Why You Need a Thermo-Rite Fireplace Door
An open fireplace or one with just a screen could be costing you money. Entropy is inescapable: Heat moves from areas of high concentration (hot areas) to areas of low concentration (cold areas). An open fireplace even with a closed flue is sucking heat out of your home.

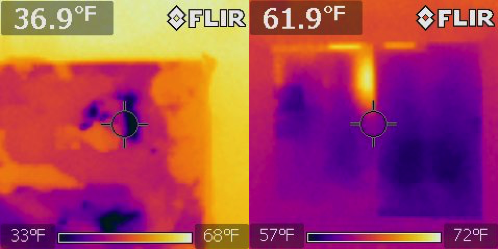

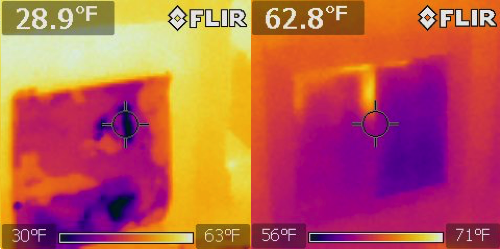

These are infrared pictures of a fireplace opening. The temperature readout on the fireplaces with doors can be double that of those without.
No Door
With Door
No Door
With Door
Everyone is more energy conscious these days. Saving energy isn’t just a good idea that can save you money, it is good for the environment and the planet. Plus, with a Thermo-Rite Fireplace it looks great.
Door Styles
There are 4 different door styles to choose from. Not all door styles are available with all models. When you are using our Building-A-Door tool all the options for that model will appear.
CV1
2 panels of tempered glass
that meet in the middle

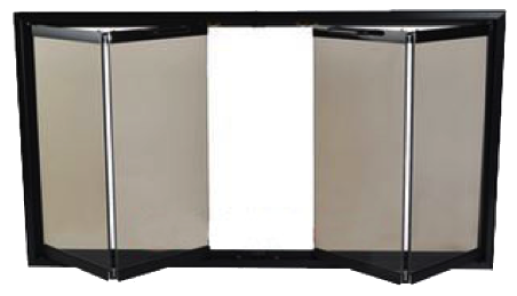

CV2
2 bi-fold doors with 4 tempered glass
panels that sit in a track

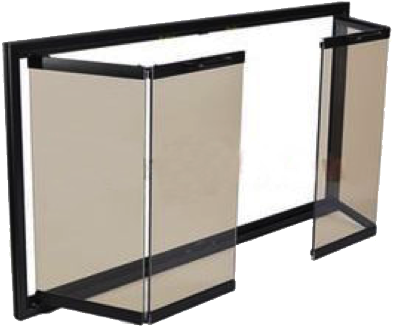

FS2
2 Free Swing bi-fold doors with 4
tempered glass panels that are
not in a track

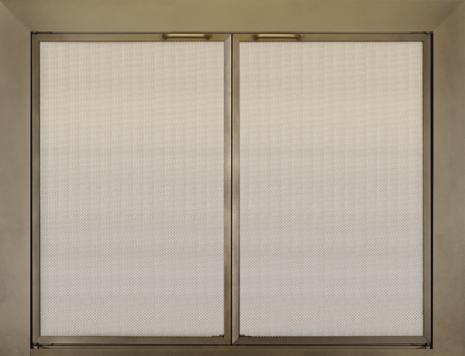

Twin Panel Mesh Doors
2 panels of .125" thick 25-Gauge
steel mesh instead of glass.
Glass Options
There are 3 Glass Options to choose from, all are transparent so your fire can be seen. All options are tempered safety glass.

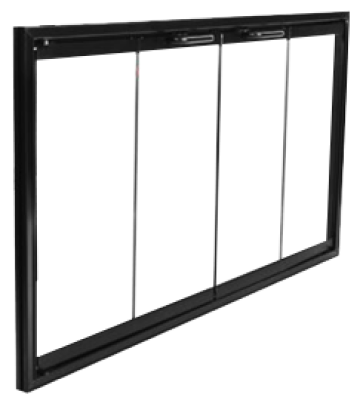

Clear
This is the standard option
Grey
A slight smokey tint
Bronze
A transparent brown sheen
How to Measure Your Fireplace
Here are the basic steps to get your dealer all the information they need to start.
Fireplace Opening Dimensions -
This is just the basic opening size of your fireplace that lets us know what size to make your door.
- Measure your Top Opening Width
- Measure your Bottom Opening Width
- Measure your Left Side Height
- Measure your Right Side Height
Surround Dimensions -
The “surround” is anything that sticks out around the fireplace cavity itself that could interfere with the fireplace door overlap.
- Measure from the Top Opening upwards
- Measure your Left Side Opening to the left
- Measure your Right Side Opening To the right
Height to Lintel -
We measure this to make sure our interior fitting doors and installation hardware will work in your fireplace.
- Locate the lintel (Not all fireplaces have one. If yours doesn’t that is OK. You can skip this section).
- Measure from the front of the lintel to the fireplace front.
- Measure from the brick to the hearth floor.
Order Forms
If you would rather email your order, find the model you want below and click it. This will download a fillable pdf. Fill it out along with the “How to Measure Your Fireplace” pdf just above this section. Take a bunch of pictures and include both the forms and photos and email it to: glassdoorinfo@thermo-rite.com
We will then send your order to a local dealer to fulfill. They will contact you to ensure all the information is correct before the order is finalized. We want to get this right for you and once we turn on the lasers - there’s no turning back!
